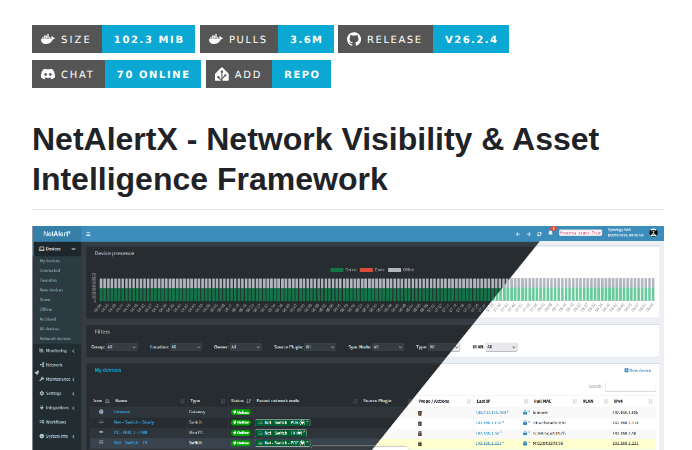

NetAlertX: The Complete Network Visibility and Asset Intelligence Framework

Take Control of Your Network with Advanced Monitoring and Real-Time Alerts

In today’s hyper-connected world, knowing exactly what’s happening on your network isn’t just convenient—it’s essential. Whether you’re a home user protecting your family’s devices, a small business safeguarding critical infrastructure, or a tech enthusiast building your smart home, NetAlertX delivers enterprise-grade network visibility in an accessible, self-hosted package.

What is NetAlertX?

NetAlertX is a powerful, open-source network monitoring and asset intelligence framework that scans your WIFI/LAN network to provide complete visibility of connected devices. Think of it as your network’s security guard—constantly watching, analyzing, and alerting you to any changes or potential threats.

Built on the foundation of the original Pi.Alert project, NetAlertX has evolved into a comprehensive solution that combines network scanning, presence detection, asset management, and intelligent alerting into a single, elegant platform.

Key Features That Set NetAlertX Apart

1. Intelligent Alert System

NetAlertX doesn’t just detect—it notifies. With support for over 80 notification services through Apprise integration, you can receive alerts via:

• Telegram
• Pushover
• Pushsafer
• NTFY
• Email
• Slack
• Discord
• SMS
• And 70+ more services

Configure alert thresholds to avoid notification fatigue while staying informed about critical network events.

Technical Specifications

Deployment Options

NetAlertX is designed for flexibility, supporting multiple deployment methods:

Docker (Recommended)

bash

docker run -d \
  --network=host \
  --restart unless-stopped \
  -v /local_data_dir:/data \
  -v /etc/localtime:/etc/localtime:ro \
  --tmpfs /tmp:uid=20211,gid=20211,mode=1700 \
  -e PORT=20211 \
  -e APP_CONF_OVERRIDE='{"GRAPHQL_PORT":"20214"}' \
  ghcr.io/jokob-sk/netalertx:latest

Home Assistant Add-on

One-click installation via the Home Assistant add-on repository

Bare Metal Installation

Traditional installation on Linux systems for maximum control

Unraid Community App

Available through the Unraid App Store

System Requirements

• Processor: ARM or x86 architecture
• Memory: Minimum 512MB RAM (1GB recommended)
• Storage: 1GB for application and database
• Network: Ethernet connection recommended (WiFi supported)
• OS: Linux-based systems, Docker-compatible platforms

Supported Browsers

• Chrome/Chromium (latest)
• Firefox (latest)
• Edge (Chromium-based)
• Safari (latest)

Installation Guide

NetAlertX offers multiple installation methods to suit different environments and expertise levels. Choose the method that best fits your setup.

Prerequisites

Before installing NetAlertX, ensure you have:

• A Linux-based system, Raspberry Pi, or Docker-compatible platform
• Network connectivity (Ethernet recommended for best results)
• At least 512MB RAM (1GB recommended)
• 1GB free disk space
• Administrative/root access to your system

Method 1: Docker Installation (Recommended)

Docker is the easiest and most popular way to deploy NetAlertX. This method works on any system that supports Docker.

Step 1: Install Docker

If you don’t have Docker installed:

On Ubuntu/Debian:

bash

curl -fsSL https://get.docker.com -o get-docker.sh
sudo sh get-docker.sh
sudo usermod -aG docker $USER

On Raspberry Pi OS:

bash

curl -fsSL https://get.docker.com -o get-docker.sh
sudo sh get-docker.sh
sudo usermod -aG docker pi

Log out and back in for group changes to take effect.

Step 2: Create Data Directories

Create directories to store NetAlertX configuration and database:

bash

mkdir -p ~/netalertx/config
mkdir -p ~/netalertx/db

Step 3: Run NetAlertX Container

Basic Installation:

bash

docker run -d \
  --name netalertx \
  --network=host \
  --restart unless-stopped \
  -v ~/netalertx/config:/data/config \
  -v ~/netalertx/db:/data/db \
  -v /etc/localtime:/etc/localtime:ro \
  --tmpfs /tmp:uid=20211,gid=20211,mode=1700 \
  -e PORT=20211 \
  -e APP_CONF_OVERRIDE='{"GRAPHQL_PORT":"20214"}' \
  ghcr.io/jokob-sk/netalertx:latest

Alternative: Using Docker Hub:

bash

docker run -d \
  --name netalertx \
  --network=host \
  --restart unless-stopped \
  -v ~/netalertx/config:/data/config \
  -v ~/netalertx/db:/data/db \
  -v /etc/localtime:/etc/localtime:ro \
  --tmpfs /tmp:uid=20211,gid=20211,mode=1700 \
  -e PORT=20211 \
  -e APP_CONF_OVERRIDE='{"GRAPHQL_PORT":"20214"}' \
  jokobsk/netalertx:latest

Step 4: Verify Installation

Check if the container is running:

bash

docker ps | grep netalertx

View logs to ensure proper startup:

bash

docker logs netalertx

Step 5: Access the Web Interface

Open your web browser and navigate to:

http://YOUR-SERVER-IP:20211

Replace YOUR-SERVER-IP with your server’s IP address (e.g., http://192.168.1.100:20211).

Method 2: Docker Compose Installation

Docker Compose provides better configuration management and is ideal for more complex setups.

Step 1: Install Docker Compose

bash

sudo apt-get update
sudo apt-get install docker-compose-plugin

Step 2: Create Project Directory

bash

mkdir ~/netalertx
cd ~/netalertx

Step 3: Create docker-compose.yml

Create a file named docker-compose.yml:

bash

nano docker-compose.yml

Add the following content:

yaml

version: '3'

services:
  netalertx:
    image: ghcr.io/jokob-sk/netalertx:latest
    container_name: netalertx
    network_mode: host
    restart: unless-stopped
    volumes:
      - ./config:/data/config
      - ./db:/data/db
      - /etc/localtime:/etc/localtime:ro
    tmpfs:
      - /tmp:uid=20211,gid=20211,mode=1700
    environment:
      - PORT=20211
      - APP_CONF_OVERRIDE={"GRAPHQL_PORT":"20214"}

Save and exit (Ctrl+X, then Y, then Enter in nano).

Step 4: Deploy with Docker Compose

bash

docker compose up -d

To view logs:

bash

docker compose logs -f

To stop NetAlertX:

bash

docker compose down

To update to the latest version:

bash

docker compose pull
docker compose up -d

Method 3: Building from Source

For developers or those who want to customize NetAlertX, you can build from source.

Step 1: Clone the Repository

bash

git clone https://github.com/netalertx/NetAlertX.git
cd NetAlertX

Step 2: Build and Run

bash

docker compose up --force-recreate --build

To run in detached mode:

bash

docker compose up -d --force-recreate --build

Step 3: Customize (Optional)

Edit the docker-compose.yml file to customize ports, volumes, or environment variables:

bash

nano docker-compose.yml

After making changes, rebuild:

bash

docker compose up -d --force-recreate --build

Method 4: Home Assistant Add-on

For Home Assistant users, NetAlertX is available as a supervised add-on.

Step 1: Add Repository

Click this button to add the repository automatically: Show Image

Or manually add the repository:

1. Navigate to Supervisor → Add-on Store
2. Click the menu (⋮) in the top right
3. Select Repositories
4. Add: https://github.com/alexbelgium/hassio-addons

Step 2: Install NetAlertX

1. Find NetAlertX in the Add-on Store
2. Click Install
3. Wait for installation to complete

Step 3: Configure the Add-on

1. Go to the Configuration tab
2. Adjust settings as needed:
   • Port (default: 20211)
   • Scan intervals
   • Network interface

Step 4: Start the Add-on

1. Click Start
2. Enable Start on boot (recommended)
3. Enable Watchdog (recommended)

Step 5: Access the Web UI

Click Open Web UI or navigate to:

http://homeassistant.local:20211

Method 5: Unraid Installation

Unraid users can install NetAlertX through the Community Applications.

Step 1: Open Community Applications

1. Go to the Apps tab in Unraid
2. Search for “NetAlertX”

Step 2: Install from Template

1. Click on NetAlertX
2. Review the default settings
3. Modify if needed:
   • Web UI Port (default: 20211)
   • Container paths
   • Network mode

Step 3: Apply and Start

1. Click Apply
2. Wait for the container to download and start
3. Click the NetAlertX icon to access the web interface

Method 6: Bare Metal Installation (Advanced)

For advanced users who prefer running NetAlertX directly on the host system without containers.

Step 1: Install Dependencies

On Ubuntu/Debian:

bash

sudo apt-get update
sudo apt-get install -y python3 python3-pip python3-dev \
  git arp-scan net-tools nmap iproute2 \
  php php-sqlite3 php-curl php-xml \
  apache2 libapache2-mod-php

On Raspberry Pi OS:

bash

sudo apt-get update
sudo apt-get install -y python3 python3-pip python3-dev \
  git arp-scan net-tools nmap iproute2 \
  php php-sqlite3 php-curl php-xml \
  lighttpd php-cgi

Step 2: Clone Repository

bash

cd /opt
sudo git clone https://github.com/netalertx/NetAlertX.git
cd NetAlertX

Step 3: Install Python Requirements

bash

sudo pip3 install -r requirements.txt

Step 4: Configure Web Server

For Apache:

bash

sudo cp install/apache-netalertx.conf /etc/apache2/sites-available/
sudo a2ensite apache-netalertx
sudo systemctl restart apache2

For Lighttpd (Raspberry Pi):

bash

sudo cp install/lighttpd-netalertx.conf /etc/lighttpd/conf-available/
sudo lighty-enable-mod netalertx
sudo systemctl restart lighttpd

Step 5: Set Permissions

bash

sudo chown -R www-data:www-data /opt/NetAlertX
sudo chmod -R 755 /opt/NetAlertX

Step 6: Create Systemd Service

bash

sudo nano /etc/systemd/system/netalertx.service

Add the following content:

ini

[Unit]
Description=NetAlertX Network Monitor
After=network.target

[Service]
Type=simple
User=www-data
WorkingDirectory=/opt/NetAlertX
ExecStart=/usr/bin/python3 /opt/NetAlertX/back/netalertx.py
Restart=always

[Install]
WantedBy=multi-user.target

Step 7: Enable and Start Service

bash

sudo systemctl daemon-reload
sudo systemctl enable netalertx
sudo systemctl start netalertx

Step 8: Verify Installation

bash

sudo systemctl status netalertx

Access the web interface at http://YOUR-SERVER-IP/netalertx

Post-Installation Configuration

Once NetAlertX is installed and running, follow these steps to configure it for your network.

Initial Setup Wizard

1. Access the Web Interface: Navigate to http://YOUR-IP:20211
2. Choose Scanning Method: Select your primary scanning method:
   • ARP Scan: Best for most networks (requires host network mode)
   • Pi-hole: If you have Pi-hole installed
   • DHCP: For DHCP lease monitoring
   • SNMP: For router-level monitoring
3. Configure Network Settings:
   • Set your network subnet (e.g., 192.168.1.0/24)
   • Select network interface (usually eth0 or wlan0)
   • Set scan interval (recommended: 5 minutes)
4. Set Up Notifications:
   • Navigate to Settings → Notifications
   • Choose notification method (Email, Telegram, Pushover, etc.)
   • Enter required credentials
   • Test notification to verify setup
5. Configure Alert Rules:
   • Go to Settings → Alerts
   • Enable alerts for:
     • New device detection
     • Device disconnections
     • Unknown devices
     • IP changes
6. First Scan: Click Run Scan to discover all devices on your network
7. Device Management:
   • Review discovered devices under Devices tab
   • Mark known devices as “recognized”
   • Add device names and notes
   • Group devices by type or location

Getting Started with NetAlertX

Quick Start Guide

After installation, follow these steps to start monitoring your network:

1. Access the Web UI: Navigate to http://your-ip:20211
2. Configure Scanners: Enable and configure your preferred scanning methods
3. Set Up Notifications: Connect your preferred notification services
4. Customize Alerts: Configure what events trigger notifications
5. Run Initial Scan: Discover all devices currently on your network
6. Review Devices: Mark known devices and add identifying information
7. Enable Workflows: Set up automation rules for repetitive tasks
8. Add Device Details: Enrich your device inventory with notes and metadata

Resource Usage

Typical resource consumption:

• CPU: 1-5% average (spikes during scans)
• RAM: 200-500MB depending on device count
• Disk I/O: Minimal (logging and database updates)
• Network: Low bandwidth usage during scans

Comparison with Alternatives

Feature	NetAlertX	Fing	WatchYourLAN	NetBox
Open Source	✅	❌	✅	✅
Self-Hosted	✅	❌	✅	✅
Plugin System	✅	❌	❌	✅
Home Assistant	✅	❌	Limited	Limited
Free	✅	Limited	✅	✅ (Community)
Mobile App	❌	✅	❌	❌
Notifications	80+ services	Limited	Basic	API-based
Learning Curve	Low	Very Low	Low	Moderate

Conclusion

NetAlertX represents the future of self-hosted network monitoring—powerful enough for professionals, accessible enough for enthusiasts, and private enough for everyone concerned about data security.

Whether you’re protecting your home network, managing a small business infrastructure, or building advanced home automation, NetAlertX provides the visibility and control you need.
