In today’s ever-evolving threat landscape, securing every layer of your IT infrastructure is paramount. For virtualized environments, the hypervisor serves as the bedrock, making its security a critical concern. VMware’s Secure Boot for ESXi hosts offers a robust mechanism to enhance the integrity and trustworthiness of your virtualization platform right from the moment of boot.
What is Secure Boot?
At its core, Secure Boot is a feature of UEFI (Unified Extensible Firmware Interface) that helps protect the boot process from malicious code. When enabled, Secure Boot ensures that only digitally signed and verified code is allowed to execute during the boot sequence. This means that if an attacker attempts to inject malware into the boot loader or kernel, Secure Boot will prevent the system from starting, thus mitigating a common attack vector.
Why is Secure Boot Essential for ESXi?
For ESXi hosts, Secure Boot provides several key benefits:
- Protection Against Rootkits and Bootkits: These types of malware are designed to hide deep within the operating system or hypervisor, making them notoriously difficult to detect and remove. Secure Boot prevents them from loading in the first place.
- Enhanced Compliance: Many industry regulations and security frameworks (e.g., NIST, PCI DSS) increasingly emphasize the importance of secure boot processes. Implementing Secure Boot for ESXi helps meet these compliance requirements.
- Integrity of the Hypervisor: By verifying the digital signatures of the ESXi boot loader, kernel, and modules, Secure Boot ensures that the hypervisor remains untampered and is running as intended by VMware. This reduces the risk of supply chain attacks or unauthorized modifications.
- Reduced Attack Surface: Eliminating the possibility of unauthorized code execution during boot significantly shrinks the attack surface for your virtualized environment.

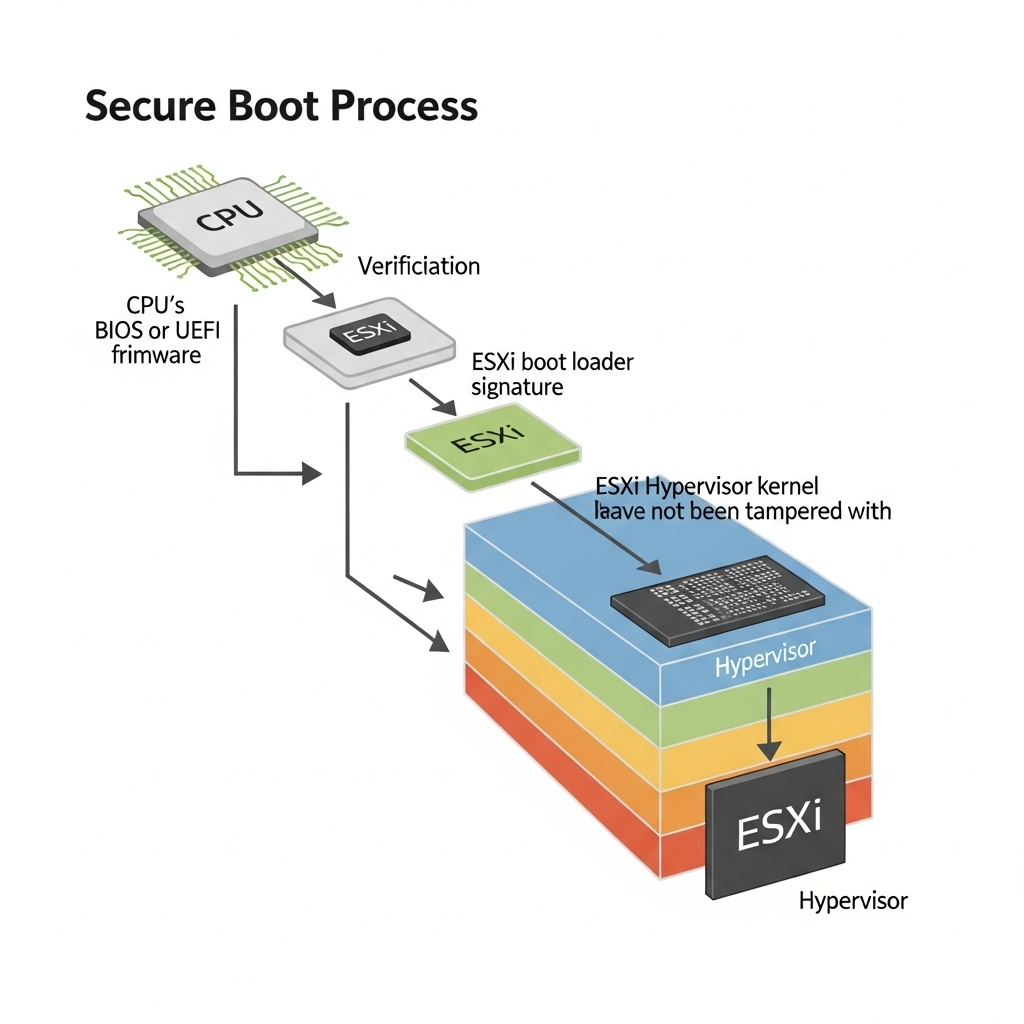

How Secure Boot Works with ESXi
When Secure Boot is enabled on an ESXi host:
- The UEFI firmware checks the digital signature of the ESXi boot loader.
- If the signature is valid and trusted, the boot loader is allowed to execute.
- The ESXi boot loader then verifies the signatures of the ESXi kernel and subsequent boot-critical components.
- This chain of trust continues until the entire ESXi hypervisor is loaded, ensuring that all executed code is legitimate.
If at any point a signature is found to be invalid or untrusted, the boot process is halted, and an error message is displayed, preventing the potential execution of malicious code.
Prerequisites for Enabling Secure Boot on ESXi
Before you embark on enabling Secure Boot, ensure your environment meets these crucial prerequisites:
- UEFI Firmware: Your ESXi host hardware must have UEFI firmware. Legacy BIOS is not supported for Secure Boot.
- ESXi 5.0 or Later (with UEFI support): While earlier versions might technically run with UEFI, Secure Boot is truly effective and supported with modern ESXi versions. For optimal results and the latest features, use ESXi 6.5 or newer.
- UEFI Boot Mode Enabled in BIOS/Firmware: This is a fundamental setting that needs to be configured at the hardware level.
- Secure Boot Enabled in BIOS/Firmware: After enabling UEFI boot, you’ll find the option to enable Secure Boot within your server’s firmware settings.
- VMware vCenter Server (Optional but Recommended): For managing multiple hosts and streamlined configuration, vCenter Server is invaluable.
Lab Tutorial: Enabling Secure Boot on an ESXi Host
This tutorial assumes you have a physical or virtual ESXi host configured with UEFI firmware and access to its BIOS/UEFI settings.
Scenario: We will enable Secure Boot on a single ESXi host.
Tools:
- Physical ESXi host (or a virtual machine configured for UEFI boot in your hypervisor, e.g., Workstation, Fusion, or another ESXi VM)
- Access to the host’s BIOS/UEFI settings
- VMware vSphere Client (HTML5) or SSH access to the ESXi host
Steps:
Part 1: Configure BIOS/UEFI Settings
- Reboot your ESXi Host: Initiate a reboot of your ESXi host.
- Access BIOS/UEFI Settings: During the boot sequence, press the appropriate key (commonly
DEL,F2,F10, orF12) to enter the BIOS/UEFI setup utility. Refer to your server’s documentation for the exact key. - Enable UEFI Boot Mode: Navigate to the “Boot” or “Boot Options” section.
- Locate the “Boot Mode” or “UEFI/Legacy Boot” option.
- Change it from “Legacy” (or “BIOS”) to “UEFI“.
- Save your changes and exit. The host will likely reboot.
- Re-enter BIOS/UEFI Settings (if necessary): After the initial reboot with UEFI enabled, you might need to re-enter the BIOS/UEFI settings again.
- Enable Secure Boot:
- Navigate to the “Security” or “Boot Options” section.
- Locate the “Secure Boot” option.
- Change it from “Disabled” to “Enabled“.
- Important: You may be prompted to enroll “Platform Key” (PK) or restore “Factory Keys.” In most cases, selecting “Restore Factory Keys” or similar will load the necessary Microsoft and UEFI CA keys. If your server vendor has specific instructions for Secure Boot, follow those.
- Save Changes and Exit: Save your changes and exit the BIOS/UEFI setup. The ESXi host will now attempt to boot with Secure Boot enabled.
Part 2: Verify Secure Boot Status in ESXi
- Boot the ESXi Host: Allow the ESXi host to boot completely.
- Connect to ESXi Host:
- Using vSphere Client (Recommended):
- Open your web browser and navigate to the vCenter Server or direct ESXi host IP address.
- Log in with appropriate credentials.
- Select the ESXi host from the left-hand navigator.
- Go to the “Monitor” tab.
- Select the “Hardware Health” sub-tab.
- Under “System” or “General,” look for a section related to “Secure Boot” or “UEFI Secure Boot.” It should show “Enabled” or “Active.”
- Using SSH (Alternative):
- Enable SSH on your ESXi host if it’s not already.
- Open an SSH client (like PuTTY or Terminal) and connect to your ESXi host’s IP address.
- Log in with your root credentials.
- Run the following command:
- Using vSphere Client (Recommended):
/usr/lib/vmware/secureboot/bin/secureBootCerts.py -l
This command will list the Secure Boot certificates and also indicate whether Secure Boot is enabled. Look for output confirming “Secure Boot enabled.” Alternatively, you can check the bootoption
esxcli system settings kernel list -o bootoption
If Secure Boot is enabled, you should see secureBoot=TRUE or similar in the output.
Conclusion
Enabling Secure Boot on your ESXi hosts is a relatively straightforward yet powerful step in enhancing the security posture of your virtualized environment. By establishing a chain of trust from the firmware up through the hypervisor, you significantly reduce the risk of malicious code compromising the very foundation of your virtual infrastructure. Make Secure Boot a standard part of your ESXi host deployment checklist to build a more resilient and secure data center.
